《精通MVC5.0》路由笔记

作者：花开花落-2014 时间：2023-09-26 阅读数：262 人阅读

MVC使用路由系统处理请求的URL。路由系统主要功能

检查请求的URL,并理解该URL对应的控制器和方法
生成URL地址
在MVC程序中有两种方式创建路由：convention-based routing和attribute routing，其中attribute routing是mvc5.0新特性

一、新建与注册路由

路由是在App_Start/RouteConfig.cs文件静态方法RegisterRoutes定义的，该方法在Global.asax.cs被调用

例1.新建并注册一个路由

public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
Route myRoute = new Route("{controller}/{action}",new MvcRouteHandler());
routes.Add("myRoute",myRoute);
}
}

此处注册路由使用routes.Add方法，大部分情况注册路由使用的是routes.MapRoute方法，如例2（与例1等价）

public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
routes.MapRoute("myRoute", "{controller}/{action}");
}
}

二、设置路由的默认值

设置程序默认起始页码也就是设置路由的默认值（用匿名类赋值），如下

例1.

public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
routes.MapRoute(
"myRoute",
"{controller}/{action}",
new { action="Index"});//匿名类赋值
}
}

此处路由匹配两个segment的URL和单个segment的URL，即以下URL匹配：

http://localhost:51248/Admin/Index

http://localhost:51248/Home

例2.
public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
routes.MapRoute(
"myRoute",
"{controller}/{action}",
new { controller="Home",action="Index"});//
}
}

以下URL都匹配上面代码的路由

http://localhost:51248/Admin/Index
http://localhost:51248/Home
http://localhost:51248 即程序默认起始页码是Home/Index的视图页面

三、使用static URL segment

public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
routes.MapRoute(
"myRoute",
"mySiteCompany/{controller}/{action}",
new { controller="Home",action="Index"});
}
}

以下URL都匹配上面代码的路由

http://localhost:51248/mySiteCompany/Customer/List
http://localhost:51248/mySiteCompany/Admin
http://localhost:51248/mySiteCompany

例3.
public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
routes.MapRoute(
"myRoute",
"X{controller}/{action}",
new { controller="Home",action="Index"});
}
}

匹配URL的例子：

http://localhost:51248/XAdmin/Index
http://localhost:51248/XAdmin
http://localhost:51248/Xhome

四、路由顺序
routes are applied in the order in which they are in the RouteCollection object.而每次routes.MapRoute注册路由都是添加到RouteCollection 列表最后，因此注册路由代码顺序就是路由顺序。当路由系统接收到一个URL请求，先和第一个路由匹配，匹配不成功再和第二个路由匹配....直到匹配成功一个路由或者没有。

例如：
public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{

routes.MapRoute("Default",
"{controller}/{action}",
new {controller="Home",action="Index"}
);//第一个

routes.MapRoute(
"myRoute",
"X{controller}/{action}",
new { controller="Home",action="Index"});//第二个
}
}

由于第一个路由可以匹配任何URL。因此该URL:http://localhost:51248/XAdmin/Index请求时，路由系统查找时匹配第一个路由成功不会继续匹配第二个路由，从而报404错误。因此上面代码应该改为如下：即两个路上顺序调换

public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{

routes.MapRoute(
"myRoute",
"X{controller}/{action}",
new { controller = "Home", action = "Index" });

routes.MapRoute("Default",
"{controller}/{action}",
new {controller="Home",action="Index"}
);
}
}

例子：假如你重构了应用程序，将控制器Shop修改为Home，此时可以利用路由兼容重构之前的URL

public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
routes.MapRoute("ShopSchema",
"Shop/{Action}",
new { controller = "Home" });

routes.MapRoute(
"myRoute",
"X{controller}/{action}",
new { controller = "Home", action = "Index" });

routes.MapRoute("Default",
"{controller}/{action}",
new {controller="Home",action="Index"}
);
}
}

public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
routes.MapRoute("ShopShcema1",
"Shop/OldAction",
new { controller = "Home", action = "Index" });

routes.MapRoute("ShopSchema",
"Shop/{Action}",
new { controller = "Home" });

routes.MapRoute(
"myRoute",
"X{controller}/{action}",
new { controller = "Home", action = "Index" });

routes.MapRoute("Default",
"{controller}/{action}",
new {controller="Home",action="Index"}
);
}
}

五、定可变长度的路由

{*catchall}
public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
routes.MapRoute("myRoute",
"{controller}/{action}/{id}/{*catchall}",
new { controller = "Home", action = "Index",id=UrlParameter.Optional}
);
}
}

以上路由可以匹配任何URL

六、URL参数

后台获取URL参数方法RouteData.Values["参数名"]

例1.
public class HomeController : Controller
{
// GET: Home
public ActionResult Index()
{
ViewBag.Controller = "Home";
ViewBag.Action = "Index";
return View("ActionName");
}

public ActionResult CustomerVariable()
{
ViewBag.Controller = "Home";
ViewBag.Action = "CustomerVariable";
ViewBag.CustomerVariable = RouteData.Values["id"];
return View();
}
}
对应视图

@{
Layout = null;
}
<!DOCTYPE html>

<html>
<head>
<meta name="viewport" content="width=device-width" />
<title>CustomerVariable</title>
</head>
<body>
<div>The Controller is :@ViewBag.Controller</div>
<div>The Action is :@ViewBag.Action</div>
<div>The Customer Variable is :@ViewBag.CustomerVariable</div>
</body>
</html>

路由设置：
public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
routes.MapRoute("myRoute",
"{controller}/{action}/{id}",
new { controller = "Home", action = "Index",id="DefaultId"}
);
}
}

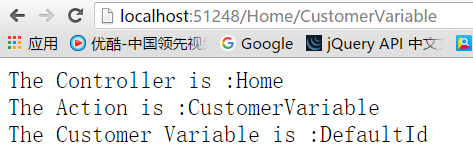

则http://localhost:51248/Home/CustomerVariable请求结果为

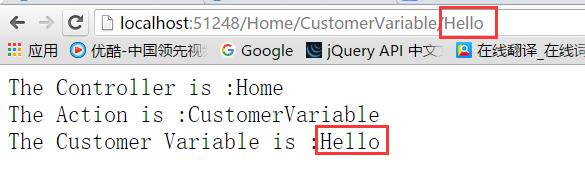

http://localhost:51248/Home/CustomerVariable/Hello请求结果显示为：

1.URL参数作控制器方法的方法参数：控制器方法的参数名称应与URL参数名称相同（路由定义的名称）

例子：CustomerVariable方法修改为如下，则页面显示与上面一样

public ActionResult CustomerVariable(string id)
{
ViewBag.Controller = "Home";
ViewBag.Action = "CustomerVariable";
ViewBag.CustomerVariable = id;
return View();
}

2.设置URL参数可选：在路由定义时设置

例子：
public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
routes.MapRoute("myRoute",
"{controller}/{action}/{id}",
new { controller = "Home", action = "Index",id=UrlParameter.Optional}
);
}
}

修改控制器方法
public ActionResult CustomerVariable(string id)
{
ViewBag.Controller = "Home";
ViewBag.Action = "CustomerVariable";
ViewBag.CustomerVariable = id??"<no value>";//判断id是否为null
return View();
}

七、使用命名空间设置控制器的优先级

假如应用程序存在两个Home控制器，假设为AdditionalController文件夹下有一个Home控制器，Controllers下也有一个Home控制器。此时程序运行会报错。可以在路由定义的地方设置路由默认值时增加命名空间来解决，如下：

public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
routes.MapRoute("myRoute",
"{controller}/{action}/{id}/{*catchall}",
new { controller = "Home", action = "Index",id=UrlParameter.Optional},
new[] { "UrlsAndRoutes.AdditionalController" }
);
}
}

此时程序处理请求时默认是先在路由添加的命名空间中查找，即UrlsAndRoutes.AdditionalController空间查找控制器，如果找不到对应的控制器则查找所有文件夹。

在路由中设置命名空间也是有顺序的，例如

public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
routes.MapRoute("myRoute",
"{controller}/{action}/{id}/{*catchall}",
new { controller = "Home", action = "Index",id=UrlParameter.Optional},
new[] { "UrlsAndRoutes.AdditionalController", "UrlsAndRoutes.Controllers" }
);
}
}

此时运行程序任然会报错。如果想要一个控制器在一个命名空间，而其他控制器在另一个命名空间，则通过添加路由来解决程序查找时命名空间顺序，例如

public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
routes.MapRoute("AddControllerRoute",
"Home/{action}/{id}/{*catchal}",
new {controller="Home",action="Index",id=UrlParameter.Optional},
new[] { "UrlsAndRoutes.AdditionalController"}
);//第一个路由

routes.MapRoute("myRoute",
"{controller}/{action}/{id}/{*catchall}",
new { controller = "Home", action = "Index",id=UrlParameter.Optional},
new[] { "UrlsAndRoutes.Controllers" }
);//第二个路由
}
}

第一个路由匹配URL第一个segment是Home，则调用AdditionalController空间的Home控制器，其他的控制器器请求则调用Controllers命名空间

在路由中设置程序在查找控制器时只查找指定的空间（即路由设置的命名空间）如下：

public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
Route myRoute=routes.MapRoute("AddControllerRoute",
"Home/{action}/{id}/{*catchal}",
new {controller="Home",action="Index",id=UrlParameter.Optional},
new[] { "UrlsAndRoutes.AdditionalController"}
);//第一个路由
myRoute.DataTokens["UaseNamespaceFallback"] = false;//设置路由查找控制器只在AdditionalController空间查找

routes.MapRoute("myRoute",
"{controller}/{action}/{id}/{*catchall}",
new { controller = "Home", action = "Index",id=UrlParameter.Optional},
new[] { "UrlsAndRoutes.Controllers" }
);//第二个路由
}
}

八、路由约束

1.使用正则表达式进行路由约束
public static void RegisterRoutes(RouteCollection routes)
{
routes.MapRoute("myRoute",
"{controller}/{action}/{id}/{*catchall}",
new { controller = "Home", action = "Index",id=UrlParameter.Optional},
new {controller= "^H.*" },
new[] { "UrlsAndRoutes.Controllers" }
);
}

public static void RegisterRoutes(RouteCollection routes)
{
routes.MapRoute("myRoute",
"{controller}/{action}/{id}/{*catchall}",
new { controller = "Home", action = "Index",id=UrlParameter.Optional},
new {controller= "^H.*",action= "^Index$|^about" },
new[] { "UrlsAndRoutes.Controllers" }
);
}

2、定义一个只响应Get请求

public static void RegisterRoutes(RouteCollection routes)
{
routes.MapRoute("myRoute",
"{controller}/{action}/{id}/{*catchall}",
new { controller = "Home", action = "Index",id=UrlParameter.Optional},
new {controller= "^H.*",action= "Index|about",httpMethod=new HttpMethodConstraint("Get")},
new[] { "UrlsAndRoutes.Controllers" }
);
}

3、使用MVC自带约束类路由约束

using System.Web.Mvc;
using System.Web.Routing;
using System.Web.Mvc.Routing.Constraints;
public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
routes.MapRoute("myRoute",
"{controller}/{action}/{id}/{*catchall}",
new { controller = "Home", action = "Index",id=UrlParameter.Optional},
new {controller= "^H.*",action= "Index|about",httpMethod =new HttpMethodConstraint("Get"),
id =new RangeRouteConstraint(10,20)},
new[] { "UrlsAndRoutes.Controllers" }
);
}
}

约束类位于命名空间System.Web.Mvc.Routing.Constraints。与RangeRouteConstraint类似的约束类还有如下：
AlpahRouteConstraint():检查是否为字母，不区分大小写
BoolRouteConstraint():匹配是否是bool类型
DateTimeRouteConstraint()
DecimalRouteConstraint()
DoubleRouteConstraint()
FloatRouteConstraint()
IntRouteConstraint()
LongRouteConstraint()
LenthRouteConstraint(len)
LenthRouteConstraint(min,max)
MaxRoute(val):匹配不大于val的数字
MinRoute(val)
MinLengthRouteConstraint(len)：匹配字符串至少len个字符
MaxLengthRouteConstraint(len)
RangeRouteConstraint（min,max）匹配数据在(min,max)\
可以同时使用多个约束类进行多种约束，如下

using System.Web.Mvc.Routing.Constraints;
public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
routes.MapRoute("myRoute",
"{controller}/{action}/{id}/{*catchall}",
new { controller = "Home", action = "Index",id=UrlParameter.Optional},
new {controller= "^H.*",action= "Index|about",httpMethod =new HttpMethodConstraint("Get"),
id =new CompoundRouteConstraint(new IRouteConstraint[]
{ new AlphaRouteConstraint(),new MinLengthRouteConstraint(6) })
},
new[] { "UrlsAndRoutes.Controllers" }
);
}
}

4、自定义约束
自定义路由约束只要实现IRouteConstraint类即可，
例子：
步骤1.定义约束类
namespace UrlsAndRoutes.Infrastructure
{
using System.Web;
using System.Web.Routing;
public class UserAgentConstraint : IRouteConstraint
{
private string requireUserAgent;
public UserAgentConstraint(string agentParam)
{
this.requireUserAgent = agentParam;
}
public bool Match(HttpContextBase httpContext, Route route, string parameterName, RouteValueDictionary values, RouteDirection routeDirection)
{
return httpContext.Request.UserAgent != null && httpContext.Request.UserAgent.Contains(requireUserAgent);
}
}
}

步骤2.运用自定义约束类

using System.Web.Mvc;
using System.Web.Routing;
using UrlsAndRoutes.Infrastructure;
public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
routes.MapRoute("myRoute",
"{controller}/{action}/{id}/{*catchall}",
new { controller = "Home", action = "Index",id=UrlParameter.Optional},
new {customConstraint=new UserAgentConstraint("Chrome")},
new[] { "UrlsAndRoutes.Controllers" }
);
}
}

九、使用属性路由

这是MVC5.0新特性。个人建议使用convention-based路由。attribute routing默认情况下是没有用的，需要在RouteConfig.cs类RegisterRoutes方法进行注册，如下：

public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
routes.MapMvcAttributeRoutes();//启用attribute routing

routes.MapRoute("myRoute",
"{controller}/{action}/{id}/{*catchall}",
new { controller = "Home", action = "Index",id=UrlParameter.Optional},
new[] { "UrlsAndRoutes.Controllers" }
);
}
}

设置好之后就可以使用属性路由了，如下

public class HomeController : Controller
{
[Route("Test")]
public ActionResult Index()
{
ViewBag.Controller = "Home";
ViewBag.Action = "Index";
return View("ActionName");
}

public ActionResult CustomerVariable(string id)
{
ViewBag.Controller = "Home";
ViewBag.Action = "CustomerVariable";
ViewBag.CustomerVariable = id??"<no value>";//判断id是否为null
return View();
}
}

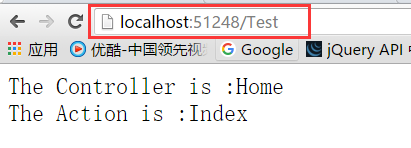

Route("Test")设置了一个静态路由，启动程序显示：

如果一个action方法被属性路由修饰，则无法通过定义RouteConfig.cs类RegisterRoutes方法中的约定路由系统进行访问。如上面的例子：Home控制器的Index被
[Route("Test")]修饰，虽然RouteConfig.cs路由定义默认启动的页面，但访问时URL必须是http://localhost:51248/Test，而http://localhost:51248/无法访问
The route attribute stops convention-based routes from targeting an action method even if attribute routing is disabled.So
take care of the MapMvcAttributeRoutes method in RouteConfig.cs
1、带URL参数的属性路由

public class CustomerController : Controller
{
// GET: Customer
public ActionResult Index()
{
ViewBag.Controller = "Customer";
ViewBag.Action = "Index";
return View("ActionName");
}

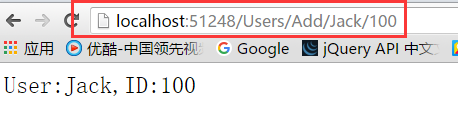

[Route("Users/Add/{user}/{id}")]
public string Create(string user,int id)
{
return string.Format("User:{0},ID:{1}",user,id);
}

public ActionResult List()
{
ViewBag.Controller = "Customer";
ViewBag.Action = "List";
return View("ActionName");
}
}

2、属性路由使用约束

[Route("Users/Add/{user}/{id:int}")]
public string Create(string user,int id)
{
return string.Format("User:{0},ID:{1}",user,id);
}

[Route("Users/Add/{User}/{password}")]
public string changePass(string user,string password)
{
return $"ChangePass Method-User:{user},Pass:{password}";
}

结果为：

3、属性路由使用复合约束

[Route("Users/Add/{User}/{password:alpha:length(6)}")]
public string changePass(string user,string password)
{
return $"ChangePass Method-User:{user},Pass:{password}";
}

十、使用路由前缀

使用路由前缀可以为多个方法定义一个共同的前缀，如下

[RoutePrefix("Users")]
public class CustomerController : Controller
{
[Route("~/Test")]
public ActionResult Index()
{
ViewBag.Controller = "Customer";
ViewBag.Action = "Index";
return View("ActionName");
}

[Route("Add/{user}/{id:int}")]
public string Create(string user,int id)
{
return string.Format("User:{0},ID:{1}",user,id);
}

[Route("Add/{User}/{password:alpha:length(6)}")]
public string changePass(string user,string password)
{
return $"ChangePass Method-User:{user},Pass:{password}";
}

public ActionResult List()
{
ViewBag.Controller = "Customer";
ViewBag.Action = "List";
return View("ActionName");
}
}

其中[Route("~/Test")]表示Index方法不需要这个前缀，其他方法都要。

十一、路由高级特性

1、@Html.ActionLink

例1.
@Html.ActionLink("This is an outgoing URL", "CustomerVariable")
@Html.ActionLink("This target another controller","Index", "Admin")
例2.URL传参

@Html.ActionLink("This is an outgoing URL", "CustomerVariable",new { id="Hello"})
例3.设置Hmtl属性，以@开始，例如设置样式

@Html.ActionLink("This is an outgoing URL", "Index","Home",null,new { id="Hello",@class="myCSSClass"})
=>

<a class="myCSSClass" href="/App/DoIndex" id="Hello">This is an outgoing URL</a>
例4.生成绝对URL

@Html.ActionLink("This is an outgoing URL", "Index","Home","https","myserver.mydomain",
"myFragmentName",new { id="myId"}, new { id="myAnchorID",@class="myCSSClass"})
=>

<a class="myCSSClass" href="https://myserver.mydomain/Home/Index/myId#myFragmentName" id="myAnchorID">This is an outgoing URL</a>
2、@Url.Action

生成纯文本的URL，非链接

例1

@Url.Action("Index", "Home", new { id="MyId"})

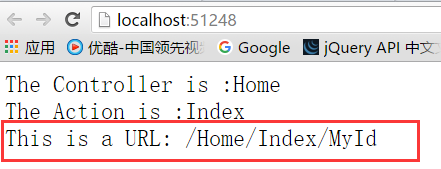

页面显示如下

例2、在控制器方法中生成URL

string myActionUrl = Url.Action("Index",new { id="myID"});
string myRouteUrl = Url.RouteUrl(new { controller="Home",action="Index"});
例3、后台跳转到其他Action

public RedirectToRouteResult MyActionMethod()
{
return RedirectToAction("Index");
}
例4、后台跳转到另一个URL

public RedirectToRouteResult MyActionMethod()
{
return RedirectToRoute(new { controller = "Home", action = "Index", id = "myID" });
}
3、@Html.RouteLink

根据某个路由生成URL

例1、
路由设置如下

public static void RegisterRoutes(RouteCollection routes)
{
routes.MapRoute("myRoute", "{controller}/{action}");

routes.MapRoute("myOtherRoute", "App/{action}", new { controller="Home"});

}

@Html.RouteLink("Click Me","myRoute","Index","Customer")
=>

<a Length="8" href="/App/Index?Length=5">Click Me</a>
4、自定义路由系统

自定义路由系统方法定一个继承于RouteBase的类，即实现RouteBase中的两个方法

GetRouteData(HttpContextBase httpContext)

GetVirtualPath(RequestContext requestContext,RouteValueDictionary values)

步骤一、定义路由类

public class LegacyRoute : RouteBase
{
private string[] urls;
public LegacyRoute(params string[] targetUrls)
{
urls = targetUrls;
}

public override RouteData GetRouteData(HttpContextBase httpContext)
{
RouteData result = null;
string requestedURL = httpContext.Request.AppRelativeCurrentExecutionFilePath;
if (urls.Contains(requestedURL, StringComparer.OrdinalIgnoreCase))
{
result = new RouteData(this,new MvcRouteHandler());
result.Values.Add("controller", "Legacy");
result.Values.Add("action", "GetLegacyURL");
result.Values.Add("legacyURL", requestedURL);
}
return result;
}

public override VirtualPathData GetVirtualPath(RequestContext requestContext, RouteValueDictionary values)
{
return null;
}
}

步骤二、注册路由类

public class RouteConfig
{
public static void RegisterRoutes(RouteCollection routes)
{
routes.Add(new LegacyRoute("~/articles/Windows_3.1_Overview.html","~/old/.NET_1.0_Class_Library"));
routes.MapRoute("myOtherRoute", "App/{action}", new { controller="Home"});
}
}

4.1.自定义Route Handler

实现IRouteHandler接口即可

例子：
using System;
using System.Web;
using System.Web.Routing;
public class CustomRouteHandler : IRouteHandler
{
public IHttpHandler GetHttpHandler(RequestContext requestContext)
{
return new CustomRouteHttpHandler();
}

public class CustomRouteHttpHandler : IHttpHandler
{
public bool IsReusable
{
get
{
return false;
}
}

public void ProcessRequest(HttpContext context)
{
context.Response.Write("Hello");
}
}
}

public class LegacyRoute : RouteBase
{
private string[] urls;
public LegacyRoute(params string[] targetUrls)
{
urls = targetUrls;
}

public override RouteData GetRouteData(HttpContextBase httpContext)
{
RouteData result = null;
string requestedURL = httpContext.Request.AppRelativeCurrentExecutionFilePath;
if (urls.Contains(requestedURL, StringComparer.OrdinalIgnoreCase))
{
result = new RouteData(this,new CustomRouteHandler());
result.Values.Add("controller", "Legacy");
result.Values.Add("action", "GetLegacyURL");
result.Values.Add("legacyURL", requestedURL);
}
return result;
}

public override VirtualPathData GetVirtualPath(RequestContext requestContext, RouteValueDictionary values)
{
return null;
}
}

十二、使用区域

十三、路由请求文件

默认情况下，路由系统先检查一个URL请求是否有相应的文件，如果有直接返回该文件不再根据使用RouteConfig.cs定义的路由，如果没有才根据RouteConfig.cs路由定义的路由进行查找。可以在RouteConfig.cs文件中更改路由的这种默认情况，如下

public static void RegisterRoutes(RouteCollection routes)
{
routes.RouteExistingFiles = true;

routes.MapRoute("default",
"{controller}/{action}/{id}",
new { controller = "Home", action = "Index", id = UrlParameter.Optional });

}

为文件设置路由

一旦设置routes.RouteExistingFiles = true后任何对文件的访问请求将会失败，此时我们可以在RouteConfig.cs为文件进行路由定义以相应相关请求，如下：

public static void RegisterRoutes(RouteCollection routes)
{
routes.RouteExistingFiles = true;
routes.MapRoute("DiskFile",
"Content/StaticContent.html",
new { controller = "Customer", action = "List" });

routes.MapRoute("default",
"{controller}/{action}/{id}",
new { controller = "Home", action = "Index", id = UrlParameter.Optional });
}

1、直接访问本地文件，绕过路由系统

public static void RegisterRoutes(RouteCollection routes)
{
routes.IgnoreRoute("Content/{fileName}.html");
routes.MapRoute("default",
"{controller}/{action}/{id}",
new { controller = "Home", action = "Index", id = UrlParameter.Optional });
}

本站大部分文章、数据、图片均来自互联网,一切版权均归源网站或源作者所有。

如果侵犯了您的权益请来信告知我们删除。邮箱：1451803763@qq.com

标签：学习资料 .Net

上一篇:史上最全的ASP.NET MVC路由配置

下一篇:处理错误：Access to the path 'C:\Windows\TEMP\xxx.tmp' is denied.
